Machinery Technology for your assembly.
An excerpt from our production and test equipment – two SMD lines, reflow and vapour phase, wave soldering, 3D AOI and in-circuit test.
Equipment at a glance

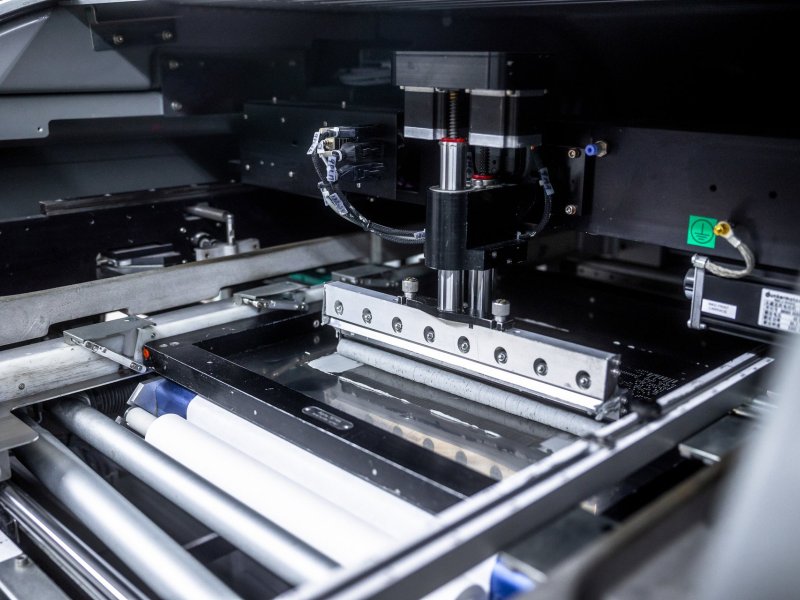

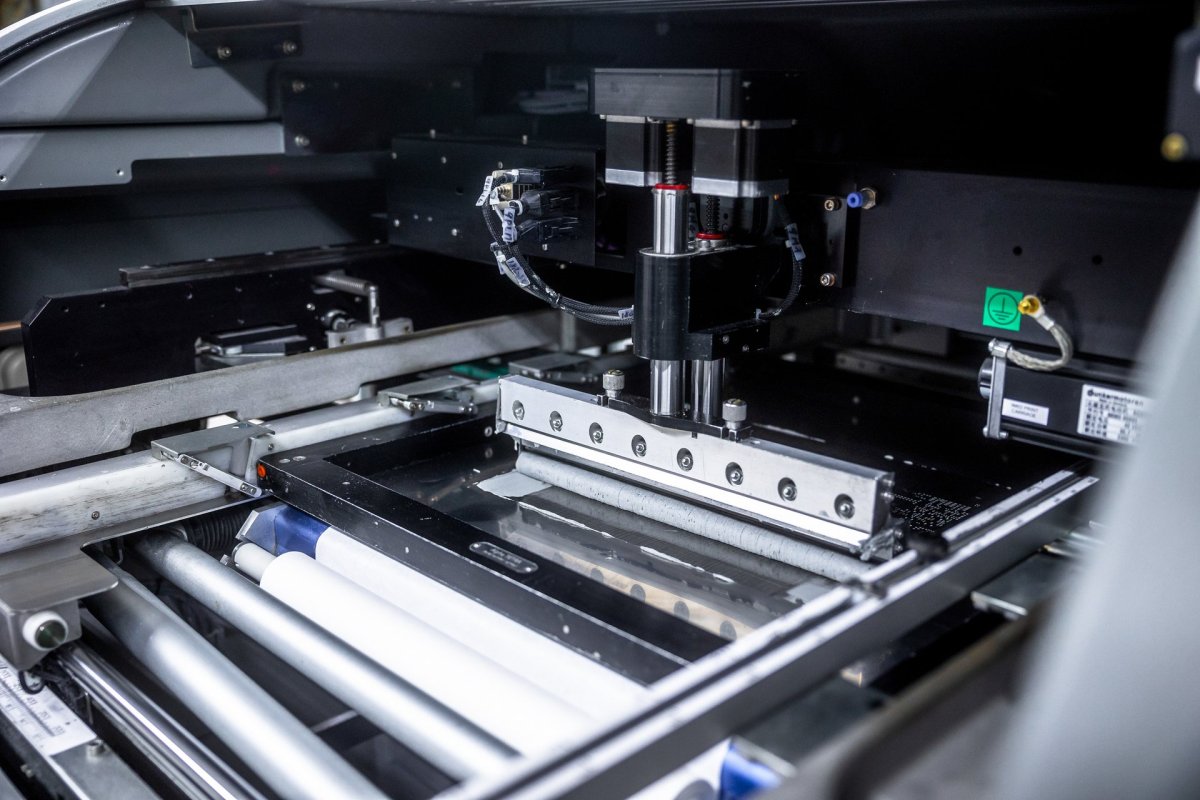

| Solder paste printing | DEK Horizon 03i with 2D+ vision, GKG G-Titan |
|---|---|
| Dispenser | Factronix MD40VS |
| SMD assembly | JUKI KE-3010AL, KE-3020VAL · JUKI KE-2050RL, KE-2060RL |
| Reflow soldering | SMT 1.7 TC convection oven |
| Vapour phase soldering | ASSCON VP1000-66, Galden 235 °C |

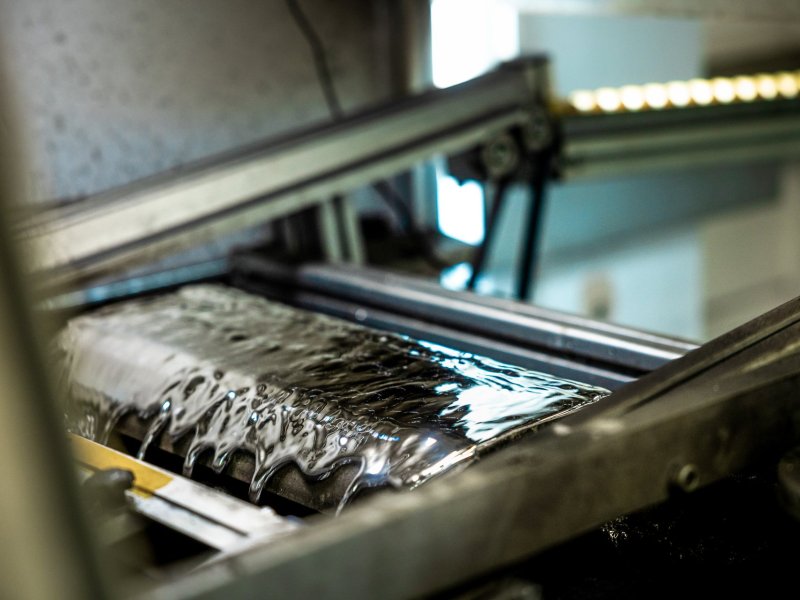

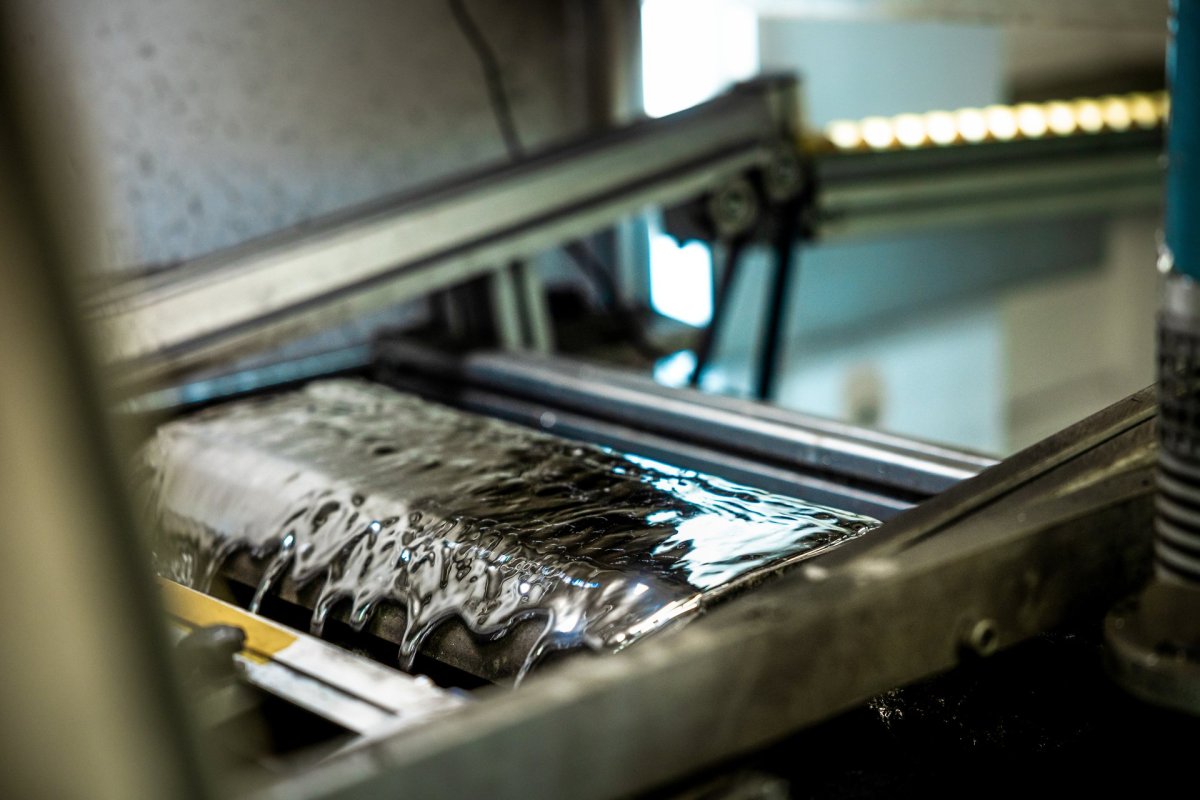

| THT | ATF 33 wave soldering system (dual wave, lead-free), hand soldering stations, press-fit technology, tin recycling |
| Material preparation | Automatic cutting and bending machines for axial, radial and crimped components |
| Cleaning | Kolb PSE LH5 PCB cleaning system |
| Optical inspection | PARMI Xceed Large 3D AOI, Vision Mantis and Lynx microscopes, object comparator |
| Testing | In-circuit test (Reinhardt KMFT670), customer-specific functional tests, flying probe via partner |
| Storage | Dry cabinets for moisture-sensitive components, ESD-safe storage |
| PCB size | SMD up to 510 × 360 mm, THT up to 460 × 330 mm |
Inside production
